HOME > Products > Road Seal

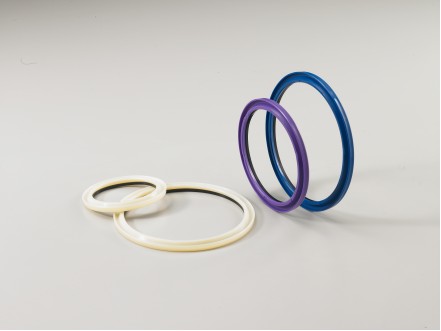

Buffer ring
모델명 : Buffer ring
품번 : BLU
재질 : UT-01, 10, 20
NNS Part Number Norminal Size of Packing Housing Dimensions UT-01 UT-10 UT-20 d D h Φd ΦD Ha C BLU-040A10 BLU-040A20 BLU-040A30 40 55.5 6 40 55.5 6.3 3 BLU-045A10 BLU-045A20 BLU-045A30 45 60.5 6 45 60.5 6.3 3 BLU-050A10 BLU-050A20 BLU-050A30 50 65.5 6 50 65.5 6.3 3 BLU-055A10 BLU-055A20 BLU-055A30 55 70.5 6 55 70.5 6.3 3 BLU-060A10 BLU-060A20 BLU-060A30 60 75.5 6 60 75.5 6.3 3 BLU-065A10 BLU-065A20 BLU-065A30 65 80.5 6 65 80.5 6.3 3 BLU-070A10 BLU-070A20 BLU-070A30 70 85.5 6 70 85.5 6.3 3 BLU-075A10 BLU-075A20 BLU-075A30 75 90.5 75 90.5 BLU-080A10 BLU-080A20 BLU-080A30 80 95.5 80 95.5 BLU-085A10 BLU-085A20 BLU-085A30 85 100.5 85 100.5 4 BLU-090A10 BLU-090A20 BLU-090A30 90 105.5 90 105.5 BLU-095A10 BLU-095A20 BLU-095A30 95 110.5 95 110.5 BLU-100A10 BLU-100A20 BLU-100A30 100 115.5 100 115.5 BLU-105A10 BLU-105A20 BLU-105A30 105 120.5 105 120.5 BLU-110A10 BLU-110A20 BLU-110A30 110 125.5 110 125.5 BLU-115A10 BLU-115A20 BLU-115A30 115 130.5 115 130.5 BLU-120A10 BLU-120A20 BLU-120A30 120 135.5 120 135.5 BLU-125A10 BLU-125A20 BLU-125A30 125 140.5 125 140.5 BLU-130A10 BLU-130A20 BLU-130A30 130 145.5 130 145.5
